Name: Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage
Brand: CHANGZHOU JKONGMOTOR CO.,LTD
SKU: motor servo stepper terintegrasi
Price: 35.00 USD
Availability: InStock

Rumah Produk motor servo stepper terintegrasi

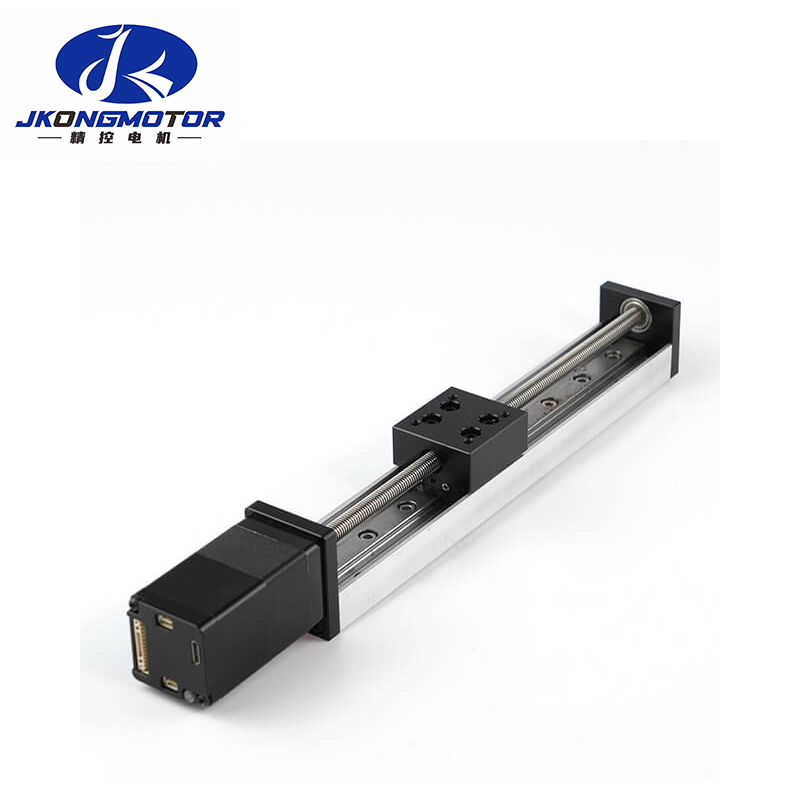

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage

Detail produk:

Tempat asal:	Cina
Nama merek:	Jkongmotor
Sertifikasi:	CE, Rohs, Reach, ISO9001, ISO14001
Nomor model:	motor servo stepper terintegrasi

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10 buah
Harga:	USD20 - 50
Kemasan rincian:	<i>sample with export carton .</i> <b>sampel dengan karton ekspor.</b> <i>big quantity with pallet</
Waktu pengiriman:	Untuk sampel, 7-15 hari/Untuk batch, 15-35days
Syarat-syarat pembayaran:	T/T, Serikat Barat, Paypal, L/C
Menyediakan kemampuan:	100000 buah/bulan

Kontak

Detil Deskripsi produk

Model:	Nema 11 17 23 24 34 motor servo stepper terintegrasi	Sudut langkah:	1,8 derajat
Saat ini:	1A - 5A atau disesuaikan	Torsi terukur:	0,2Nm - 3Nm
pembuat enkode:	17Bit / 1000ppr / 15bit	Panjang motor:	Disesuaikan
Metode Komunikasi:	Pulsa / RS485 / Canopen

Jkongmotor Nema 17 ISC42 Accurate Linear Motion System Linear Stepper Motor With Integrated Driver for Chip Mounting Actuator

Product Description:

A motor with a controller or a driver, and an encoder, is an integrated motor. Integrated motors save wiring between the motor, controller and the control cabinet. By minimizing the machine complexity and installation efforts, the overall system cost is reduced

Characteristics of Integrated Dc Servo Motor

1. Compact: Integrated design of integrated drive motor Easy installation, small footprint, and simple wiring.

2. Multiple motion control modes: Supports the CiA402 standard protocol, including Relative position mode, absolute position mode, speed Mode, torque mode, and origin regression mode.

3. low-power consumption: Adopting low internal resistance MOS to ensure motor performance Excellent torque utilization while reducing motor power consumption And heat generation, effectively extending the service life of

the motor.

4. control mode: Supports pulse/RS485/CANopen.

5. Multi segment position speed function: With multi segment position function and multi segment speed function.

6. Safe and reliable: Driver built-in in place and alarm output signal Convenient for upper computer detection and control built-in Multiple alarm functions such as over differential, over undervoltage, and over temperature Can ensure the safe operation of processing equipment.

Model naming rules for low voltage integrated dc servo motor

① Name	JK: Changzhou Jkongmotor	⑦ Brake (Optional)	B1: 24V Brake
② Integrated Stepper Motor Series	ISP: Waterproof Type	⑦ Brake (Optional)	B2: 48V Brake
② Integrated Stepper Motor Series	ISC: Plug Type	⑧ Shaft Type	None: Standard Output Shaft
③ Motor Frame	28=28mm	⑧ Shaft Type	01: Special Output Shaft
	42=42mm	⑨ Leading Wire Type	Y: Crimping Shell
	57=57mm		H: Aviation Plug
	60=60mm		M:PG Gland
	86=86mm	⑩ Number of Leading Wires	Crimping Shell: 3=Power supply + communication + I/O
④ Control Type	P: Pulse		Crimping Shell: 4=Power supply + 2 x communication + I/O
	R: RS485		Aviation Plug: 2=Power supply + communication
	C: CANopen		Aviation Plug: 4=Power supply + 2 x communication + I/O
⑤ Motor Length	0.3m / 1m / Customized		PG Gland: 2=Power supply + communication
⑥ Encoder Type	A1: 17bit single turn absolute encoder		PG Gland: 4=Power supply + 2 x communication + I/O
	A2: 17bit multi turn absolute encoder	⑪ Gearbox (Optional)	G: Planetary Gearbox
	A3: 15bit single turn absolute encoder		RG: Right-angle Planetary Gearbox
	A4: 15bit multi turn absolute encoder		WG: Worm Gearbox
⑫ Gear Ratio of the Reducer	03-1:3; 05-1:5; 10-1:10; 20-1:20...

Jkongmotor has a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.

Features:

1. Adopting a new 32-bit M4+core with 120M or 240M main frequency
2. Stable torque characteristics from low to high speeds, with high speed and precision
3. Equipped with brake resistor interface to prevent damage to the electromechanical braking system
4. Wide speed range, low temperature rise, and high efficiency
5. Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
6. Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
7. Configure a 17bit single turn absolute encoder

Communication method:

1. Pulse type

2. RS485 MOdbus RTU network type

3. CANopen network type

Protection level:

Waterproof type: IP30, IP54, IP65, optional

Usage:

Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc

ISC28 Series Nema 11 28mm Pulse RS485 CANopen Integrated Stepper Servo Motor:

Series	V2 Series	Control method (optional)	Step Angle	Phase Current	Phase Resistance	Phase Inductance	Rated Torque	Body Length	Weight	Insulation Class	Integrated Encoder
			(°)	(A)	(Ω)	(mH)	(N.m)	(mm)	(Kg)	/	/
ISC28-0.065Nm	JKISC28-P1A3	Pulse	1.8	1	2.8	1.8	0.065	48.1	0.13	B	1000ppr /17bit /15bit
	JKISC28-R1A3	RS485
	JKISC28-C1A3	CANopen
ISC28-0.095Nm	JKISC28-P2A3	Pulse	1.8	0.67	6.8	5.5	0.095	61	0.17	B	1000ppr /17bit /15bit
	JKISC28-R2A3	RS485
	JKISC28-C2A3	CANopen
ISC28-0.12Nm	JKISC28-P3A3	Pulse	1.8	0.67	8.8	8	0.12	67	0.22	B	1000ppr /17bit /15bit
	JKISC28-R3A3	RS485
	JKISC28-C3A3	CANopen

ISC42 Series Nema 17 42mm Pulse RS485 CANopen Integrated Stepper Servo Motor:

Series

V1 Series

V2 Series

Control method (optional)

Step Angle

Phase Current

Phase Resistance

Phase Inductance

Rated Torque

Body Length

Weight

Insulation Class

Integrated Encoder

(°)

(A)

(Ω)

(mH)

(N.m)

(mm)

(Kg)

ISC42-0.26Nm

JKISS42-P01A

JKISC42-P1A3

Pulse

1.8

1.33

1.8

2.5

0.26

55.4

0.28

1000ppr /17bit /15bit

JKISS42-R01A

JKISC42-R1A3

RS485

JKISS42-C01A

JKISC42-C1A3

CANopen

ISC42-0.42Nm

JKISS42-P02A

JKISC42-P2A3

Pulse

1.8

1.7

1.2

2.8

0.42

61.1

0.34

1000ppr /17bit /15bit

JKISS42-R02A

JKISC42-R2A3

RS485

JKISS42-C02A

JKISC42-C2A3

CANopen

ISC42-0.5Nm

JKISS42-P03A

JKISC42-P3A3

Pulse

1.8

1.68

1.55

2.8

0.5

69.9

0.44

1000ppr /17bit /15bit

JKISS42-R03A

JKISC42-R3A3

RS485

JKISS42-C03A

JKISC42-C3A3

CANopen

ISC42-0.73N.m

JKISS42-P04A

JKISC42-P4A3

Pulse

1.8

1.7

2.6

6.2

0.73

81.9

0.61

1000ppr /17bit /15bit

JKISS42-R04A

JKISC42-R4A3

RS485

JKISS42-C04A

JKISC42-C4A3

CANopen

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage 4

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage 5

ISC57 Series Nema 23 57mm Pulse RS485 CANopen Integrated Stepper Servo Motor:

Series

V1 Series

V2 Series

Control method (optional)

Step Angle

Phase Current

Phase Resistance

Phase Inductance

Rated Torque

Body Length

Weight

Insulation Class

Integrated Encoder

(°)

(A)

(Ω)

(mH)

(N.m)

(mm)

(Kg)

ISC57-0.55Nm

JKISS57-P01A

JKISC57-P1A3

Pulse

1.8

2.8

0.7

1.4

0.55

61.5

0.55

1000ppr /17bit /15bit

JKISS57-R01A

JKISC57-R1A3

RS485

JKISS57-C01A

JKISC57-C1A3

CANopen

ISC57-1.2Nm

JKISS57-P02A

JKISC57-P2A3

Pulse

1.8

2.8

0.9

1.2

0.8

1000ppr /17bit /15bit

JKISS57-R02A

JKISC57-R2A3

RS485

JKISS57-C02A

JKISC57-C2A3

CANopen

ISC57-1.89Nm

JKISS57-P03A

JKISC57-P3A3

Pulse

1.8

2.8

1.1

3.6

1.89

1.2

1000ppr /17bit /15bit

JKISS57-R03A

JKISC57-R3A3

RS485

JKISS57-C03A

JKISC57-C3A3

CANopen

ISC57-2.2N.m

JKISS57-P04A

JKISC57-P4A3

Pulse

1.8

1.4

4.5

2.2

102.5

1.3

1000ppr /17bit /15bit

JKISS57-R04A

JKISC57-R4A3

RS485

JKISS57-C04A

JKISC57-C4A3

CANopen

ISC57-2.8N.m

JKISS57-P05A

JKISC57-P5A3

Pulse

1.8

4.2

0.75

2.8

116.5

1.6

1000ppr /17bit /15bit

JKISS57-R05A

JKISC57-R5A3

RS485

JKISS57-C05A

JKISC57-C5A3

CANopen

ISC57-3.0N.m

JKISS57-P06A

JKISC57-P6A3

Pulse

1.8

4.2

0.9

3.8

132

1.8

1000ppr /17bit /15bit

JKISS57-R06A

JKISC57-R6A3

RS485

JKISS57-C06A

JKISC57-C6A3

CANopen

ISC60 Series Nema 24 60mm Pulse RS485 CANopen Integrated Stepper Servo Motor:

Series	V2 Series	Control method (optional)	Step Angle	Phase Current	Phase Resistance	Phase Inductance	Rated Torque	Body Length	Weight	Insulation Class	Integrated Encoder
			(°)	(A)	(Ω)	(mH)	(N.m)	(mm)	(Kg)	/	/
ISC60-1.6Nm	JKISC60-P1A3	Pulse	1.8	4.2	0.5	1.4	1.6	73.7	0.8	B	1000ppr /17bit /15bit
	JKISC60-R1A3	RS485
	JKISC60-C1A3	CANopen
ISC60-2.0Nm	JKISC60-P2A3	Pulse	1.8	4.2	0.6	1.8	2	87.2	1.3	B	1000ppr /17bit /15bit
	JKISC60-R2A3	RS485
	JKISC60-C2A3	CANopen
ISC60-2.8Nm	JKISC60-P3A3	Pulse	1.8	4.2	0.8	3	2.8	1.8.2	1.5	B	1000ppr /17bit /15bit
	JKISC60-R3A3	RS485
	JKISC60-C3A3	CANopen
ISC60-3.8N.m	JKISC60-P4A3	Pulse	1.8	4.2	0.75	3.6	3.8	121.2	1.8	B	1000ppr /17bit /15bit
	JKISC60-R4A3	RS485
	JKISC60-C4A3	CANopen
ISC60-4.1N.m	JKISC60-P5A3	Pulse	1.8	4.2	1	3.8	4.1	130.7	2	B	1000ppr /17bit /15bit
	JKISC60-R5A3	RS485
	JKISC60-C5A3	CANopen

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage 12

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage 13

ISC86 Series Nema 34 86mm Pulse RS485 CANopen Integrated Stepper Servo Motor:

Series	V2 Series	Control method (optional)	Step Angle	Phase Current	Phase Resistance	Phase Inductance	Rated Torque	Body Length	Weight	Insulation Class	Integrated Encoder
			(°)	(A)	(Ω)	(mH)	(N.m)	(mm)	(Kg)	/	/
ISC86-4.5Nm	JKISC86-P1A3	Pulse	1.8	6	0.37	3.4	4.5	107.8	2.54	B	1000ppr /17bit /15bit
	JKISC86-R1A3	RS485
	JKISC86-C1A3	CANopen
ISC86-6.5Nm	JKISC86-P2A3	Pulse	1.8	6	0.47	4.18	6.5	127.3	3.24	B	1000ppr /17bit /15bit
	JKISC86-R2A3	RS485
	JKISC86-C2A3	CANopen
ISC86-7.0Nm	JKISC86-P3A3	Pulse	1.8	6	0.36	2.8	7	130.8	3.94	B	1000ppr /17bit /15bit
	JKISC86-R3A3	RS485
	JKISC86-C3A3	CANopen
ISC86-8.5N.m	JKISC86-P4A3	Pulse	1.8	6	0.36	3.8	8.5	144.3	4.44	B	1000ppr /17bit /15bit
	JKISC86-R4A3	RS485
	JKISC86-C4A3	CANopen
ISC86-9.5N.m	JKISC86-P5A3	Pulse	1.8	6	0.58	6.5	9.5	155.8	4.74	B	1000ppr /17bit /15bit
	JKISC86-R5A3	RS485
	JKISC86-C5A3	CANopen
ISC86-12N.m	JKISC86-P6A3	Pulse	1.8	6	0.44	5.5	12	182.3	6.24	B	1000ppr /17bit /15bit
	JKISC86-R6A3	RS485
	JKISC86-C6A3	CANopen

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage 16

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage 17

Integrated Stepper Servo motor customized:

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage 20

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage 21

Company Profile:

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage 22

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage 23

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.

Equipments Show:

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage 24

Production Flow:

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage 25

Package:

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage 26

Certification:

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage 27

Label:

Kontak Person: Miss. Annie

Tel: +8613218457319

Faks: 86-519-88713769

Produk lainnya

Jkongmotor Nema 23 Open / Closed Loop Stepper Motor 0.5Nm - 3Nm Hybrid Integrated Driver with RS485 Communication

Model: Nema 11 17 23 24 34 motor servo stepper terintegrasi
Sudut langkah: 1,8 derajat
Saat ini: Disesuaikan
Torsi terukur: 0,55Nm - 3Nm

Jkongmotor JKISC28 RS485 CANopen Nema 11 Integrated Stepper Motor & Medical Grade Linear Actuator for Liquid Handling Actuator

Model: Nema 11 17 23 24 34 motor servo stepper terintegrasi
Sudut langkah: 1,8 derajat
Saat ini: 0,67A 1A atau disesuaikan
Torsi terukur: 0,065Nm - 3Nm

Jkongmotor JKISC28-R2A3 RS485 ModBUS RS485 Linear Stepper Motor With Integrated Driver for Laboratory Automation Actuator

Model: Nema 11 17 23 24 34 motor servo stepper terintegrasi
Sudut langkah: 1,8 derajat
Saat ini: 0,67A 1A atau disesuaikan
Torsi terukur: 0,065Nm - 3Nm

Jkongmotor JKISC28-C2A3 ModBus CAN Integrated XYZ Linear Actuator Motion Stage Stepper Motor for Diagnostic Equipment Actuator

Model: Nema 11 17 23 24 34 motor servo stepper terintegrasi
Sudut langkah: 1,8 derajat
Saat ini: 0,67A 1A atau disesuaikan
Torsi terukur: 0,065Nm - 3Nm

Jkongmotor JKISC28 RS485 CANopen Integrated Closed Loop Linear Stepper Motor with Built in Driver for Medical Dosing Actuator

Model: Nema 11 17 23 24 34 motor servo stepper terintegrasi
Sudut langkah: 1,8 derajat
Saat ini: 0,67A 1A atau disesuaikan
Torsi terukur: 0,065Nm - 3Nm

Jkongmotor Nema 8 11 17 23 24 34 Precision Positioning Actuator Integrated Linear Motion Motor for CT Scanner Positioning Motor

Model: Nema 11 17 23 24 34 motor servo stepper terintegrasi
Sudut langkah: 1,8 derajat
Saat ini: 1A - 5A atau disesuaikan
Torsi terukur: 0,2Nm - 3Nm

Jkongmotor Nema 11 17 23 24 34 RS485 Intelligent Linear Stepper Motor Linear Guide Stepper Module for Infusion Pump Linear Motor

Model: Nema 11 17 23 24 34 motor servo stepper terintegrasi
Sudut langkah: 1,8 derajat
Saat ini: 1A - 5A atau disesuaikan
Torsi terukur: 0,2Nm - 3Nm

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage

Jkongmotor JKISC28 42 57 60 86 CANopen Integrated Positioning Motor Linear Motion Slide Module for Laser Engraving Linear Stage

Jkongmotor Nema 17 ISC42 Accurate Linear Motion System Linear Stepper Motor With Integrated Driver for Chip Mounting Actuator

Product Description:

Characteristics of Integrated Dc Servo Motor

Model naming rules for low voltage integrated dc servo motor

Features:

Communication method:

Protection level:

Usage:

ISC42 Series Nema 17 42mm Pulse RS485 CANopen Integrated Stepper Servo Motor:

ISC60 Series Nema 24 60mm Pulse RS485 CANopen Integrated Stepper Servo Motor:

ISC86 Series Nema 34 86mm Pulse RS485 CANopen Integrated Stepper Servo Motor:

12Nm nema 23 motor dc,

12Nm Nema 23 Motor Servo,

36V Nema 23 Motor Servo
